LED Guide Lights

Proper alignment of the trucks/trailers at your loading dock is an essential component in keeping it safe, productive, and energy-efficient. Our LED Guide Lights offer reliable, bright indicators that help truck drivers back into the optimal parking position; centered with the bumpers and vehicle restraint, and appropriately aligned with the dock seal.

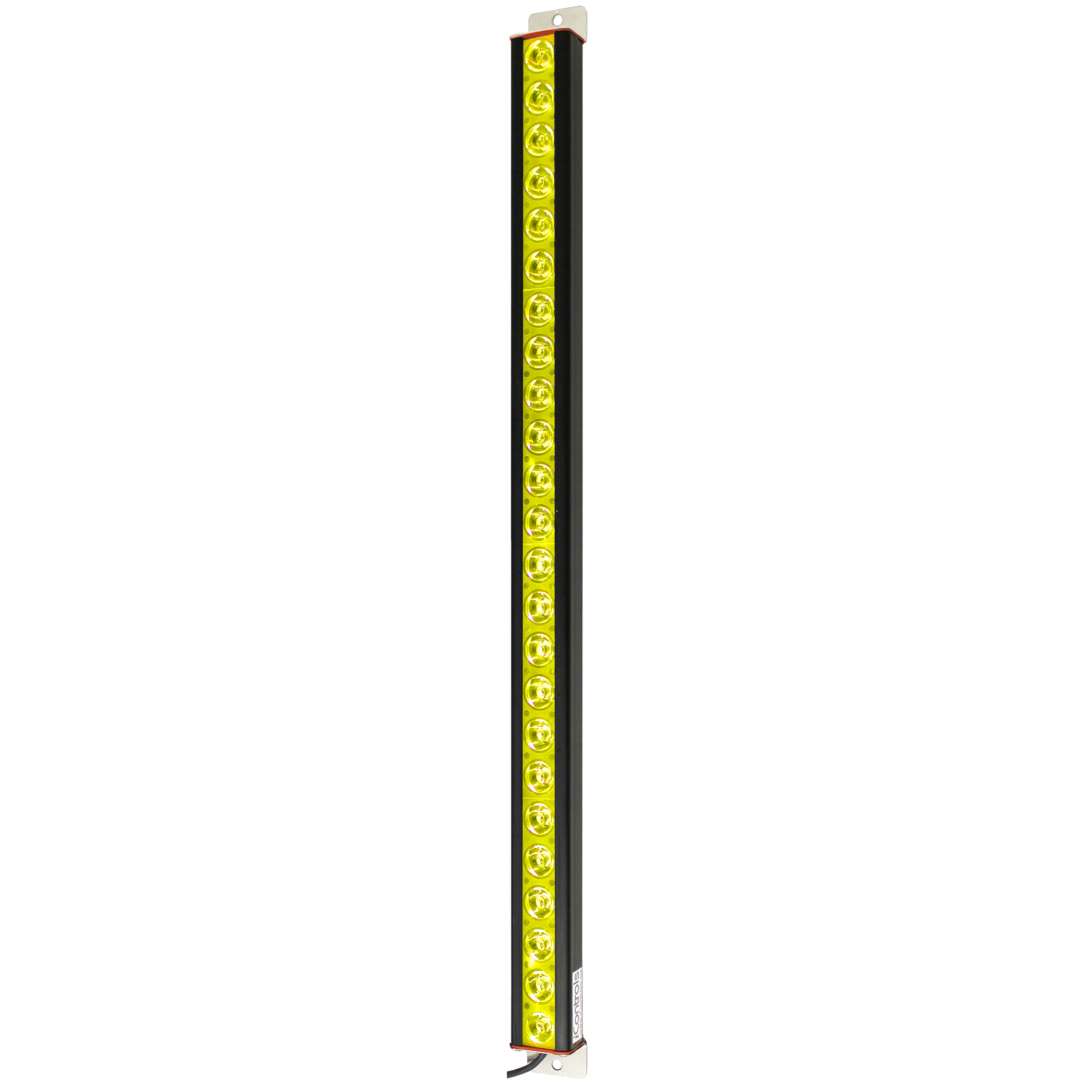

Amber Guide Lights for Loading Docks

Amber Guide Lights for Loading Docks
Part Number: GL-24-LV
Our LED lights offer long-lasting, reliable high-visibility in all weather conditions including direct sunlight, with low power consumption.
  • Installation type: Flush mount
  • Light source type: LED
  • Voltage: 12-24Vac/dc
  • Amperage: 140mA @ 24V, 280mA @ 12V
  • Assembled dimensions: 24 3/8" H x 1 1/2" W x 1" D
  • Item weight: 1.45 pounds
Contact Sales

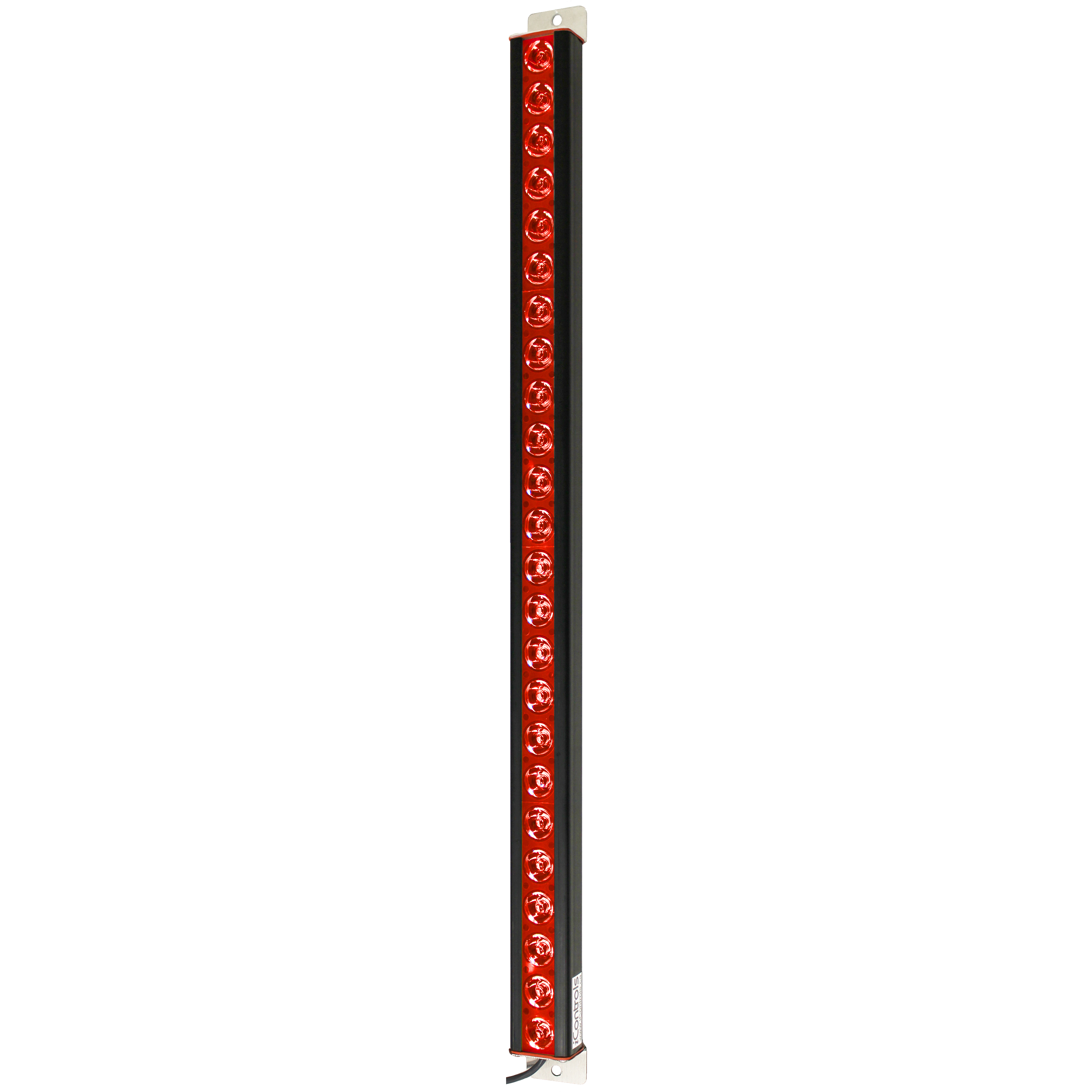

Red Guide Lights for Loading Docks

Red Guide Lights for Loading Docks
Part Number: GL-24-LV-R
Our LED lights offer long-lasting, reliable high visibility in all weather conditions including direct sunlight, with low power consumption.
  • Installation type: Flush mount
  • Light source type: LED
  • Voltage: 12-24Vac/dc
  • Amperage: 140mA @ 24V, 280mA @ 12V
  • Assembled dimensions: 24 3/8" H x 1 1/2" W x 1" D
  • Item weight: 1.45 pounds
Contact Sales

Features

Water-Resistant

Robust housing made with weather-resistant materials that withstand corrosion. Boards coated in water-resistant polymer for optimal protection from water and humidity.

Slim Profile

Slim, discrete design ensures little risk of damage due to accidental impact. Fits easily between narrow openings.

Voltage

Wide input voltage range of 12-24Vac/dc (power adapter available for alternate voltages).

Design

Available in Amber or Red

Specifications

Warranty

  • 3 Years

Installation & Support
