"Door is Ready: Press Open to Start" Message on LCD Panel
If the LCD screen displays the message: "Door is Ready: Press Open to Start"
for your PULSE 100 Series door operator,
it means that the encoder has been reset due to a power outage.
To resolve this, push the open button to reset the encoder. The door will slowly open until it hits the hard-stop bracket.

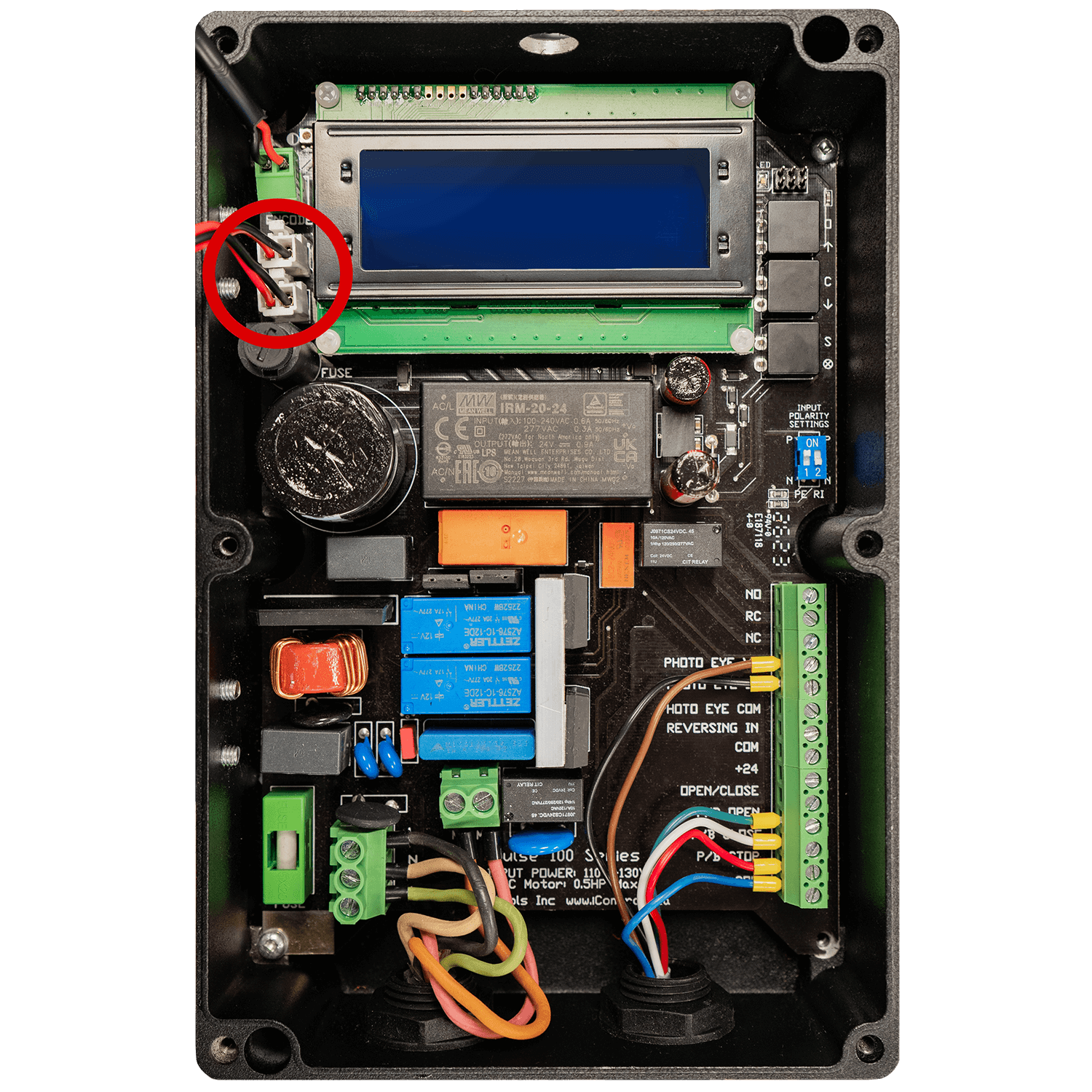

To prevent this message showing up in the future, make sure that the built-in battery backup is connected correctly on the control board using the two connectors shown in the picture.
To resolve this, push the open button to reset the encoder. The door will slowly open until it hits the hard-stop bracket.
To prevent this message showing up in the future, make sure that the built-in battery backup is connected correctly on the control board using the two connectors shown in the picture.
