Photoelectric Sensors

We provide three reliable photoelectric sensors for our PULSE commercial door operators and garage door openers, each designed for your different installation needs.

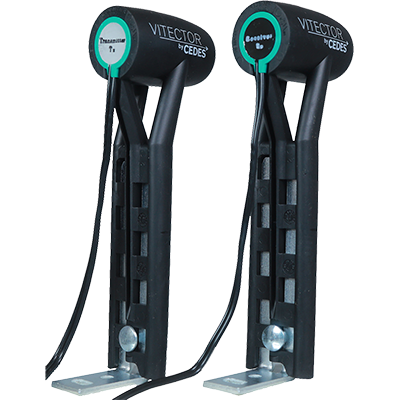

Vitector-Fraba Optoeye Through-Beam Photo-Eye

Vitector-Fraba Optoeye Through-Beam Photo-Eye
Part Number: SA-OPTOEYE-RT
Specifications:
  • Monitored through-beam photoelectric kit
  • Enclosed in durable rubber housing
  • 45-foot (14m) range
  • 6-40Vdc supply voltage
  • 50mA max power consumption
  • Adjustable steel mounting bracket included
  • UL 325 recognized, NEMA 4X rated
Contact Sales

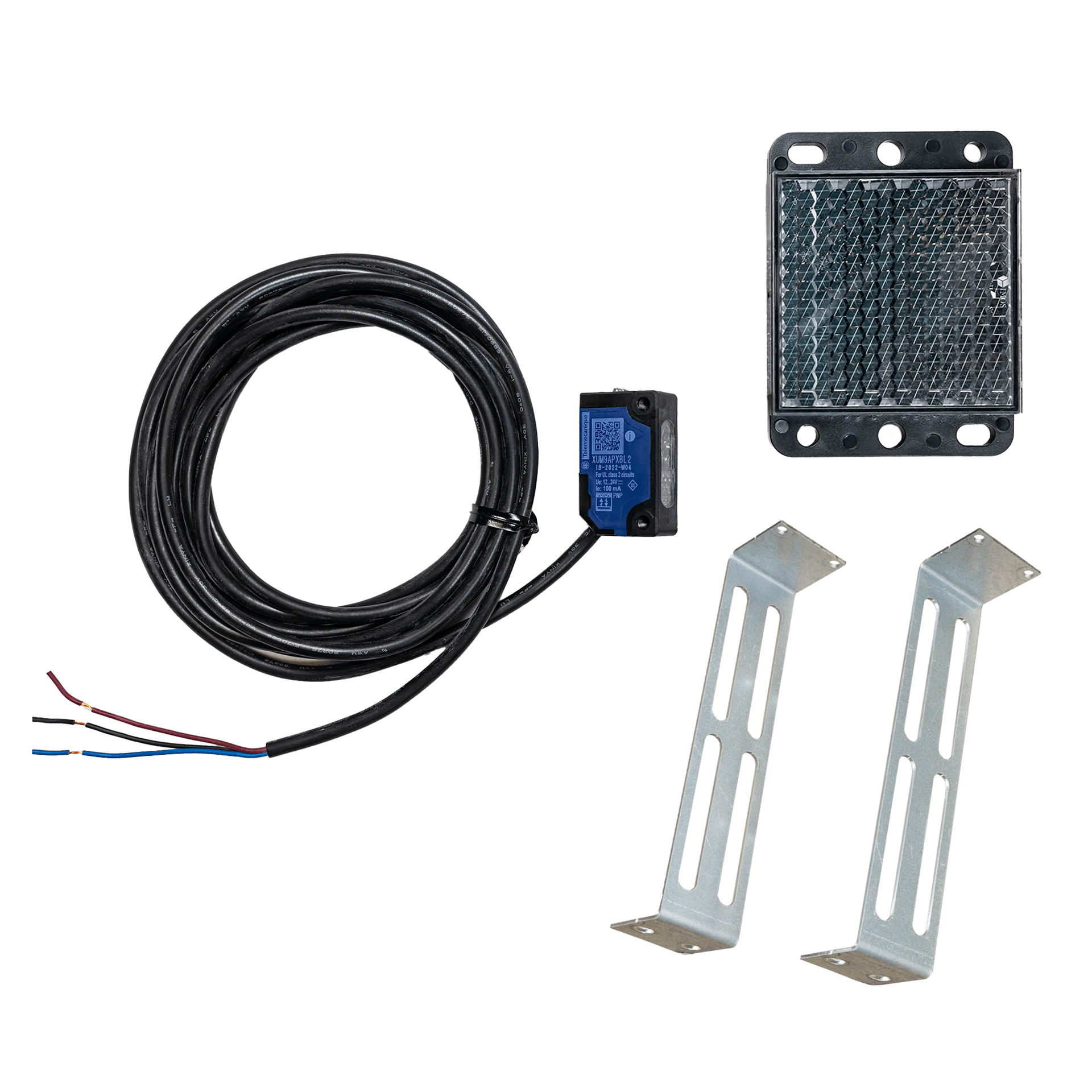

Polarized Reflective Photo-Eye Kit

Polarized Reflective Photo-Eye Kit
Part Number: SA-XUM9APXBL2-KIT
Specifications:
  • Miniature retro-reflective polarised photo electric sensor
  • 26-foot (8m) max sensing distance
  • 10-30Vdc supply voltage
  • 20mA power consumption
  • 50 x 50mm reflector, 2 brackets and 6 ½ feet (2m) of cable included
  • cULus Listed
Contact Sales

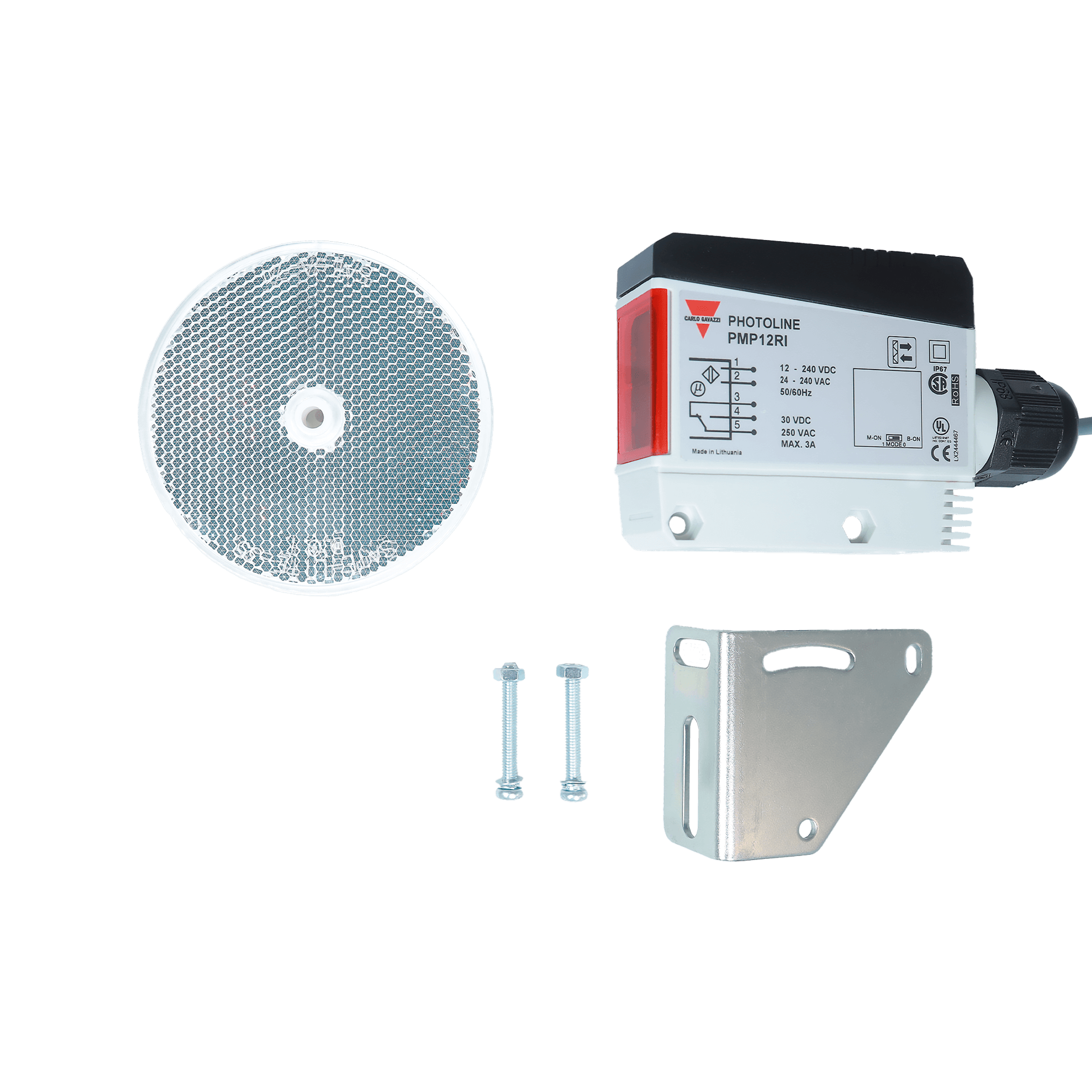

Carlo Garvazzi Photo-Eye

Carlo Garvazzi Photo-Eye
Part Number: SA-PMR10RI
Specifications:
  • Retro-reflective, polarized photo-electric sensor
  • LED-indication for targeted devices
  • Make or break switching function (switch selectable)
  • 33-foot (10m) range
  • Multi-switch voltage: 11 to 264Vdc and 24 to 240Vac, 50/60Hz
  • 1.5W operational power
  • Bracket, hardware, reflector and 6 ½ feet (2m) of cable included
  • UL listed/CSA approved
Contact Sales
